Onitsuka OQS-2″ Series – Dinamika Teknika

ONiTSUKA

	OQS 205	OQS 207	OQS 208	OQS 215
	Submersible Pump (Drainage Pump)
Motor Output	0.75 HP / 0.55 kW	1.0 HP / 0.75 kW	1.5 HP / 1.10 kW	2.0 HP / 1.50 kW
Phase	Single Phase / 220V – 50Hz
Discharge Bore	2 “
Maximum flow	18 M3/min		26 M3/min	30 M3/min
Maximum head	15 M	22 M	18 M	21 M
Performance (Flow / head)	3 M3/h 14 M	3 M3/h 21 M	3 M3/h 16 M	3 M3/h 20 M
	9 M3/h 12 M	9 M3/h 17 M	12 M3/h 15 M	12 M3/h 19 M
	15 M3/h 7 M	15 M3/h 9 M	21 M3/h 12 M	21 M3/h 15 M

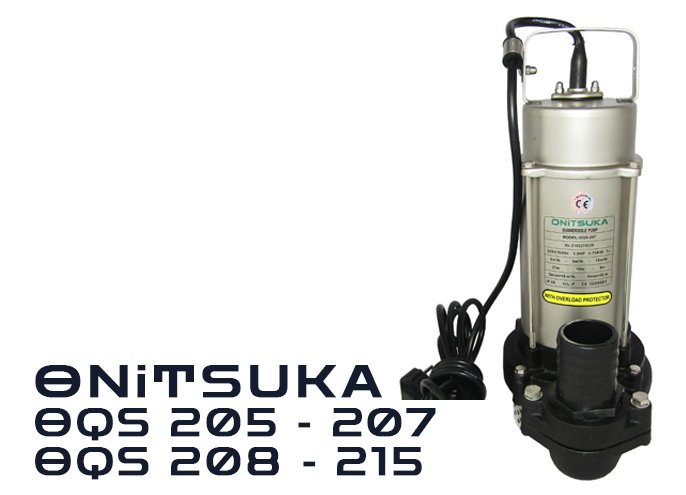

Varian	OQS 205 (manual)	OQS 207 (manual)	OQS 208 (manual)	OQS 215 (manual)

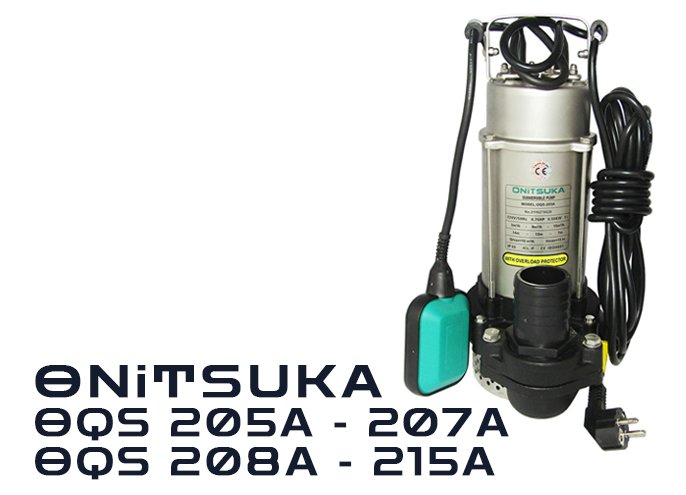

Varian	QOS 205 A (Float Switch)	QOS 207 A (Float Switch)	QOS 208 A (Float Switch)	QOS 215 A (Float Switch)
IP & ICL	68 & F
Winding	100% Cooper Wire
Pump Upper Cap	Stainless Steel
Pump Body	Cast Iron
Motor Housing	Stainless Steel
Shaft	CNC Shaft
Mechanical Seal	Carbon
Application	– Civil Engineering & Construction – Fountain & Water feature – Tunel & Caisson drainage – Agricultural irrigation – Waste water – Sump drainage – Flood control – Dewatering for fish pond or basement and cellars
……………………………………………………………………………………………………………
