ONiTSUKA

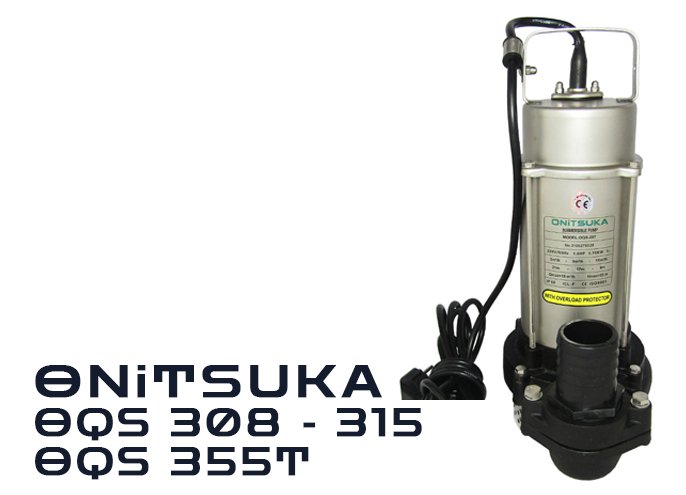

	OQS 308	OQS 315	OQS 422	OQF422
	Submersible Pump (Drainage Pump)
Motor Output	1.5 HP / 1.10 kW	2.0 HP / 1.50 kW	3.0 HP / 2.20 kW	3.0 HP / 2.20 kW
Discharge Bore	3″		4″
Maximum flow	46 M3/min	63 M3/min	81 M3/min
Maximum head	13 M	14 M	15 M
Performance (Flow / head)	10 M3/h 12 M	20 M3/h 12 M	10 M3/h 14 M
	20 M3/h 11 M	40 M3/h 10 M	40 M3/h 11 M	20 M3/h 13 M
	40 M3/h 8 M	60 M3/h 6 M	70 M3/h 4 M	30 M3/h 12 M
Varian	OQS 308 (Manual) 220 V – 50 Hz	OQS 315 (Manual) 220 V – 50 Hz	OQS 422 (Manual) 220 V – 50 Hz	(Float Switch) 220 V – 50 Hz

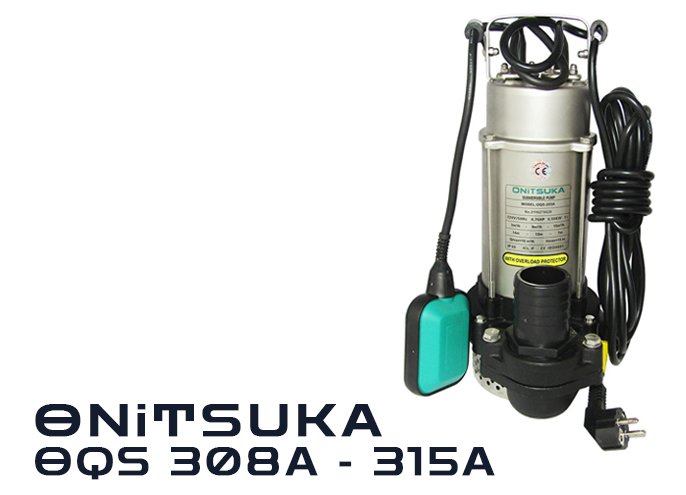

	OWS 308A (Float Switch) 220 V – 50 Hz	OWS 315A (Float Switch) 220 V – 50 Hz	OQS 422T (Manual) 380 V – 50 Hz
IP & ICL	68 & F
Winding	100% Cooper Wire
Pump Upper Cap	Stainless Steel
Pump Body	Cast Iron
Motor Housing	Stainless Steel
Shaft	CNC Shaft
Mechanical Seal	Carbon
Application	– Civil Engineering & Construction – Fountain & Water feature – Tunnel & Caisson drainage – Agricultural irrigation – Waste water – Sump drainage – Flood control – Dewatering for fish pond or basement and cellars
……………………………………………………………………………………………………………
