Onitsuka OWS Series – Dinamika Teknika

ONiTSUKA

	OWS 203	OWS 205	OWS 207	OWS 308	OWS 315

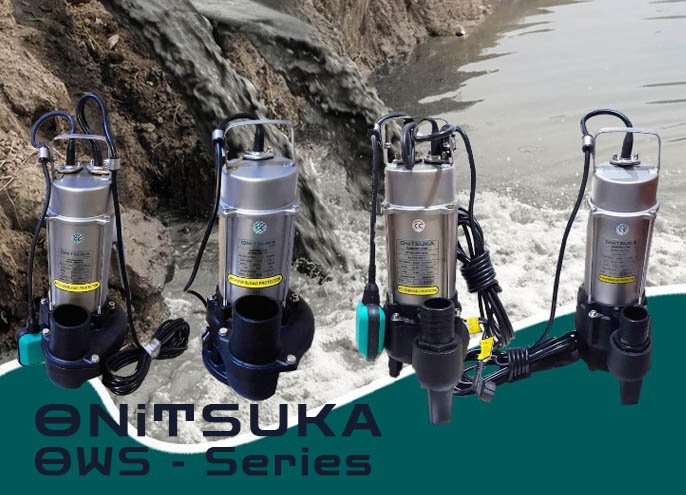

	Submersible Pump (Sewage Pump )
Motor Output	0.5 HP / 0.37 kW	0.75 HP / 0.55 kW	1.0 HP / 0.75 kW	1.5 HP / 1.10 kW	2.0 HP / 1.50 kW
Discharge Bore	2″			3″
Maximum flow	16 M3 /min	20 M3 /min	25 M3 /min	45 M3 /min	56 M3 /min
Maximum head	6 M	8 M	11 M	8 M	12 M
Performance (Flow / head)	3 M3/h 5.5 M	6 M3/h 7 M	3 M3/h 10.5 M	6 M3/h 7.5 M	10 M3/h 11 M
	9 M3/h 4.5 M	12 M3/h 6 M	15 M3/h 8.8 M	24 M3/h 6 M	30 M3/h 9 M
	15 M3/h 3.5 M	18 M3/h 4 M	21 M3/h 6.5 M	42 M3/h 3 M	40 M3/h 7 M

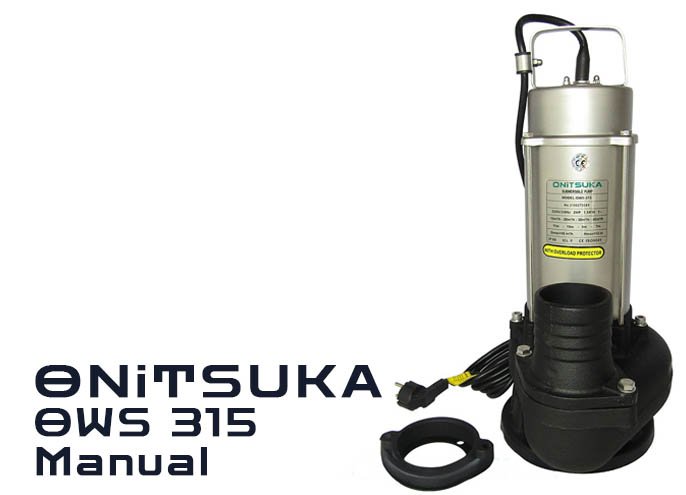

Varian	OWS 203 (Manual) 220 V – 50 Hz	OWS 205 (Manual) 220 V – 50 Hz	OWS 207 (Manual) 220 V – 50 Hz	OWS 308 (Manual) 220 V – 50 Hz	OWS 315 (Manual) 220 V – 50 Hz

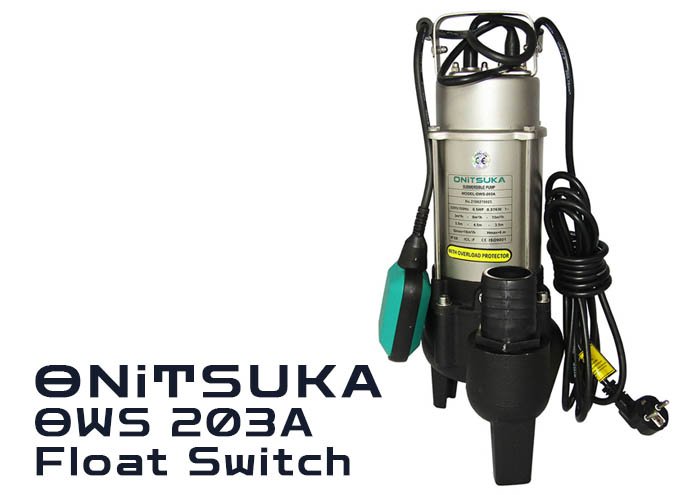

	OWS 203A (Float Switch) 220 V – 50 Hz	OWS 205A (Float Switch) 220 V – 50 Hz	OWS 207A (Float Switch) 220 V – 50 Hz	OWS 308A (Float Switch) 220 V – 50 Hz	OWS 315A (Float Switch) 220 V – 50 Hz
	OWS 203A (Float Switch) 220 V – 50 Hz	OWS 205A (Float Switch) 220 V – 50 Hz	OWS 207T (Manual) 380 V – 50 Hz	OWS 308A (Float Switch) 220 V – 50 Hz	OWS 315T (Manual) 380 V – 50 Hz
IP & ICL	68 & F
Winding	100% Cooper Wire
Pump Upper Cap	Stainless Steel
Pump Body	Cast Iron
Motor Housing	Stainless Steel
Shaft	CNC Shaft
Mechanical Seal	Carbon
Application	– Sewage Pumping Station – Sewage Treatment Plants – Septic Tanks – Collecting & Settling Sumps – Flood & Emergency – Anywhere Drainage if Dirty Water with Rags Mixed In – Hospital – Mills & Factory, for Pumping Slurry, Sludge, Viscous & Dirty Water
……………………………………………………………………………………………………………
